Electrodoc - electronics tools

Electrodoc kayan aiki ne mai sauƙi da ƙarfi, tattare da tarin kayan aikin lantarki da bayanai masu amfani ga kowane mai sha'awar lantarki. Maraba da zuwa Electrodoc, jagoran ku na cikakken ilimin lantarki da kayan aiki! Wannan manhaja, wacce a da aka fi sani da Electrodroid kuma yanzu ta zo da sabon suna da sabbin fasali, an tsara ta musamman don ɗalibai, masu sha'awa, da ƙwararrun injiniyoyi. Yana ba ku damar samun damar kayan aiki masu mahimmanci da bayanan da kuke buƙata kai tsaye daga na'urar ku. Wannan sigar kyauta ce, mai ɗauke da tallace-tallace, wacce ke ba ku damar gwada duk mahimman ayyukanmu.

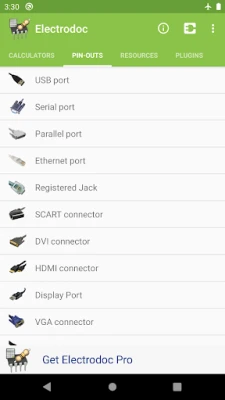

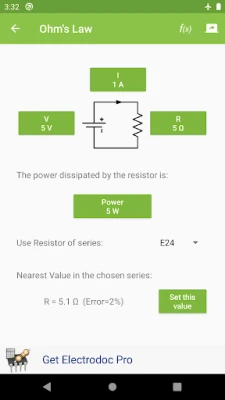

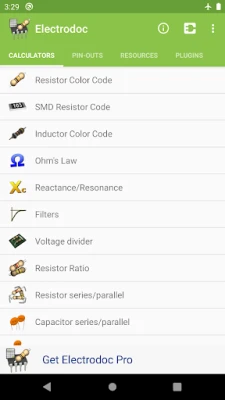

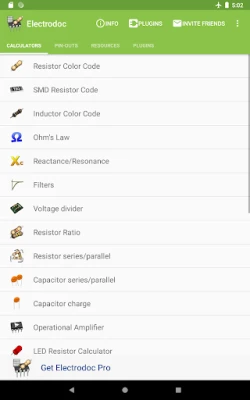

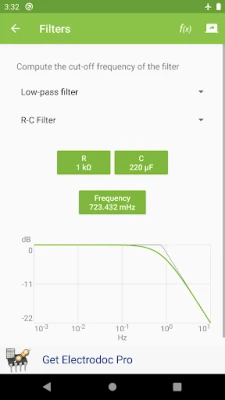

A cikin Electrodoc, zaku gano tarin masu lissafi masu ban mamaki don kowane bukata. Daga lissafin launukan resistor (Resistor Color Code), masu hana wutar lantarki na SMD (SMD Resistor Code), da kuma masu gudanar da wutar lantarki (Inductor Color Code), zuwa ƙa'idodin lantarki masu mahimmanci kamar Dokar Ohm (Ohm's Law), Reactance/Resonance, da kuma tace wutar lantarki (Filters). Zaku iya kuma amfani da masu raba wutar lantarki (Voltage divider), lissafin fitilun LED (LED Resistor Calculator), da kuma kayan aikin NE555. Manhajar tana kuma kunshe da cikakken bayani game da tsarin haɗi (pin-outs) na na'urori daban-daban, kama daga tashoshin USB, Serial, Ethernet, HDMI, VGA, zuwa nau'ikan masu haɗawa irin su SCART, DVI, da kuma haɗin Arduino, yana tabbatar da cewa kuna da duk bayanan da ake buƙata a yatsanka.

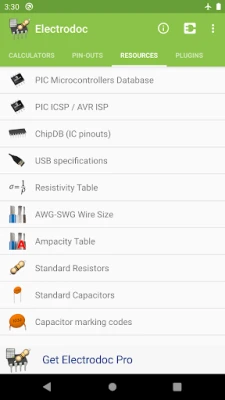

Bayan waɗannan kayan aikin, Electrodoc yana aiki a matsayin taskar albarkatun ilimi. Ya haɗa da bayanan PIC ICSP / AVR ISP, ChipDB don gano pinouts na IC, teburin ƙimar wutar lantarki (Resistivity Table), girman waya (AWG-SWG Wire Size), alamar capacitors, alamun zane na lantarki, da teburin ASCII. Ga masu neman ƙarin ci gaba, sigar Pro tana ba da gogewa ba tare da tallace-tallace ba tare da ƙarin fasali masu ban mamaki. Wannan ya haɗa da sabbin masu lissafi kamar Zener Diode, juyawa Y-Δ, da kuma masu canza Decibel da RMS. Haka kuma, akwai ƙarin tsarin haɗi na musamman kamar Raspberry Pi, SD card, SIM/Smart card, da kuma JTAG. Sigar Pro tana inganta wasu masu lissafi kuma tana ba da damar tsara jerin kayan aiki yadda kuke so. Bugu da ƙari, Electrodoc yana goyan bayan ƙarin kayan aiki (plugins) don fadada ayyukansa, kamar bayanan micro-controllers na PIC da AVR, masu kwaikwaya, da kuma neman sassan lantarki.
